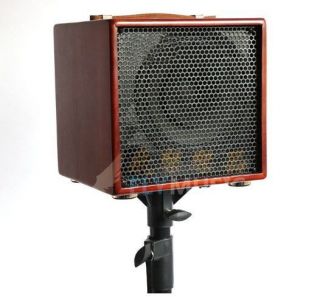

Freeman 100w Acoustic Guitar Amp:
Connecting and starting-up:
Check to ensure that the mains voltage at your location corresponds to what is permitted for operating the Free Man 100. You will find the necessary information on the rear side of the amplifier. Before switching the amp on, the "Master" control should be turned to the zero position (as far left as it will go) and all other controls to middle position. Then make all necessary cable connections (mains, instrument and/or microphone).Now you can switch on your Free Man 100 with the power switch on the rear of the amp. The green power indicator shows that the amp is operational.
Level control:
You can use the "High/Low"-switch and the "Gain"-control to adjust the various pick-up systems and signal sources to FreeMan 100. The "Clip"-indicator shows that the input signal is too high. You should then reduce the "Gain"-control or "Volume" control on your guitar or other source to ensure distortion-free reproduction. Then set the desired overall volume with the "Master"-control.
Tone controls:
The three band tone controls of your Free Man 100 are designed to fulfill the special requirements of acoustic instruments and the general demands of other sources. The "Color"-switch in Input 2 activates a "mid-cut treble-boost" filter which is particularly appropriate for fingerstyle techniques.
Effects:
The Free Man 100 has an integrated (internal) digital effect setting by the control of “EFX Level”; also, a supplementary effect device can be connected (external effect).For this purpose, use the sockets at the rear of Free Man 100 "Send" and "Return"(send to the input, return from the output of the external effect).The intensity will then be set by the external effect device.
A standard double foot switch can be connected to the "Footswitch" socket on the rear of the amp with a stereo cable. This switch can be used to turn the internal and external effects on and off.
Features:
100% brand new and unused
SPECIFICATION
Series: Acoustic Series
Amplifier Type: Solid State
Color: Nature
Electronics
Inputs: Two Inputs
Input 1:
Input: socket for a 6.3mm jack plug
Line/Mic: switch to adjust input sensitivity
Line: sources with line level, instruments with active preamplifiers and magnetic sound pick-ups
Mic: symmetrical microphone input
Gain:input level control
Input 2:
Input: socket for a 6.3mm jack plug
High/Low: switch to adjust input sensitivity
High impedance only instruments with a piezo electric pick-up,
Low for instruments with active preamplifiers and magnetic sound pick-ups
Gain: input level control
Clip: overload indicator
Color:mid-range contour filter
Equalizer:
Bass: tone control for bass
Middle: tone control for mid-range
Treble: tone control for treble
EFX Level: intensity control for internal
digital effect
Power: power indicator lamp
Master: main volume control for both inputs
Channels: One Channel
Power Handling: 40 Watts into 4 Ohms
Controls: Input 1: Gain,
Input 2: Gain, Clip, Color
Equalizer: Bass, Middle, Treble,Power, Master
Jacks and switches on the rear side of the amp:
Line Out: preamplifier output after the master control
Send: output for an external effect device
Tuner: output for a tuner after the master control
Headphones: headphone output
Return: input for an external effect device or
another signal source, for example CD-player
Footswitch: connection for a double foot switch with
which the effects can be switched
DI-Out: XLR output before the master control
Power Off/On: combined mains switch with a mains socket
Hardware
Cabinet Material: Solid Tong wood
Front Panel: Brown
Amplifier Length: 270mm
Amplifier Width: 230mm
Amplifier Height: 270mm
Amplifier NET Weight: 5kgs
Effects: Line Out, Send, Return
Speakers
Speaker: 1*8" Special design Speaker
Speaker Impedance: 4 Ohm
Miscellaneous
Unique Features: LINE/MIC & HIGH/LOW inputs; Footswitch Control; DI-OUT, COLOR control, 3-
band EQ, Brown Metal Grille
Accessories
Knobs: Thin Style Amp Knobs
Package included: 1pcs freeman 100
